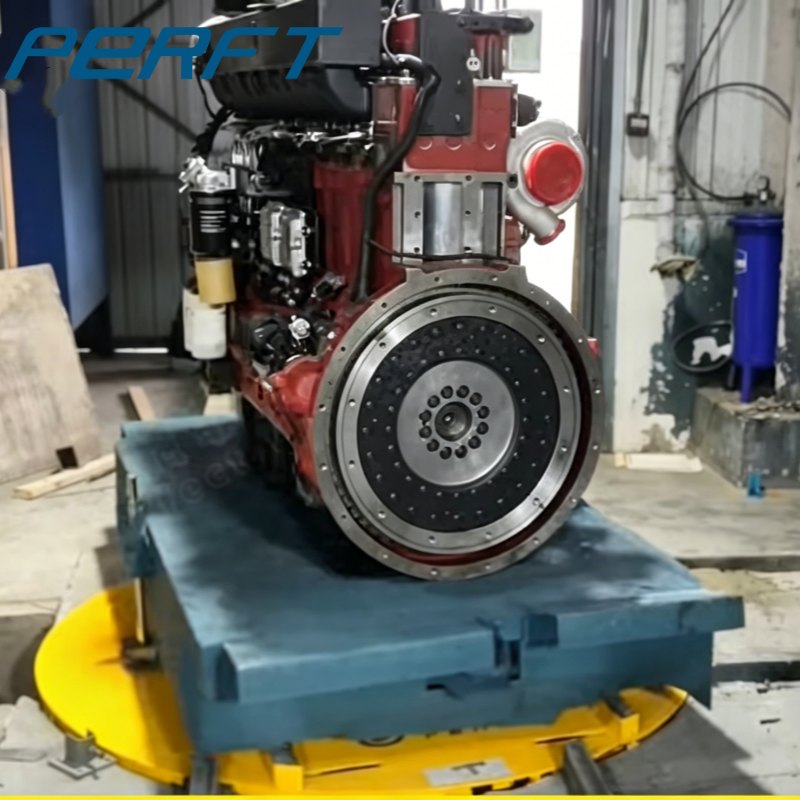

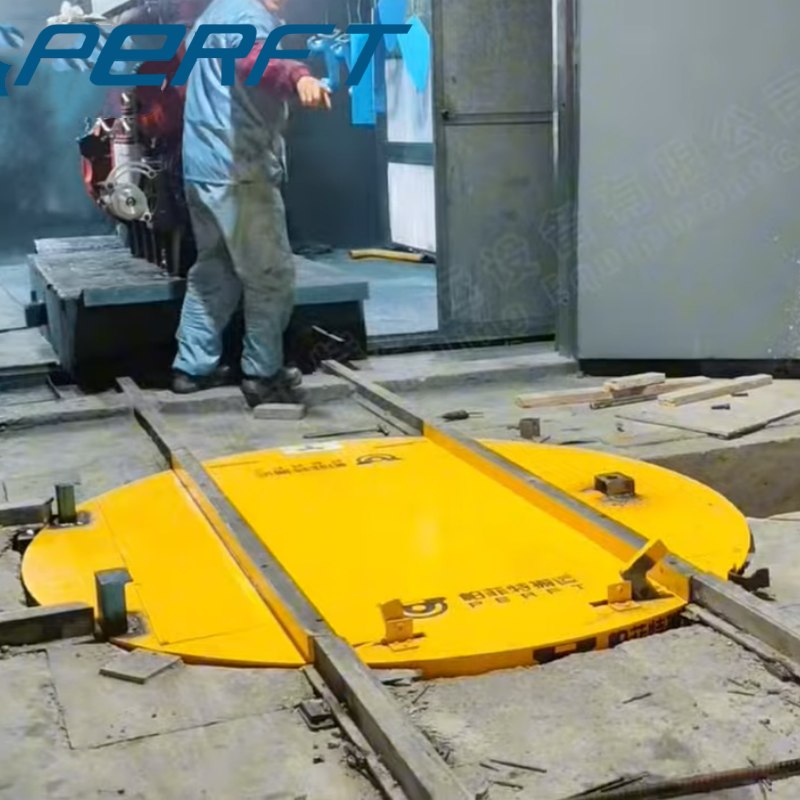

Industrial Turntable to Transport the Equipment

Industrial turntable and rail transfer cart system for efficient heavy-duty equipment handling in steel workshops. Enables precise direction changes, improves workflow in limited spaces, and ensures safe operation with battery power, warning systems, and enhanced safety markings.

Rail turntable is powered by battery and the turntable is controlled by PLC to realize the rail connection. The turnplate’s power gets from AC power and can turn freely from different angle.

The Workshop Uses A Track Electrician Flat Car To Transfer Large Objects In A Short Distance, And There Is A Right Angle Turn In The Middle. How To Achieve This? Industrial Workshop Transportation Often Needs Turning, Even 90 Degree Right Angle Turning, Which Is The Track Needs To Cross.

Rail turntable car provides a range of benefits for factories and warehouses. Its ability to rotate 360 degrees, ease of use, and small footprint make it a highly flexible and efficient transportation solution. Industries that invest in rail turntable cars can expect to see significant improvements in productivity, efficiency, and overall profitability.

Low voltage rail powered transfer cart  is recommended for customers who need to weigh more than 5 tons (T).

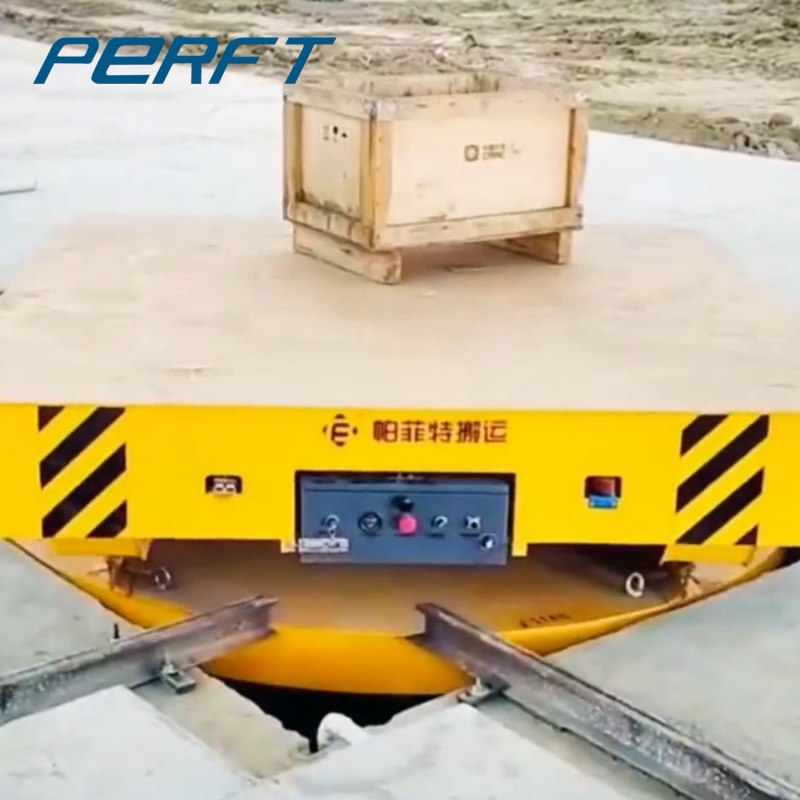

This is a rail transfer car – turntable bogie, its load is 6 tons, battery power. This type of rotary bogie is often used in conjunction with the rail transfer car. It is often used as a turning point on a production line.

Application range: metallurgy, coal, electromechanical, heavy industry and other industries
Handling objects: large molds, aluminum coils, steel coils, steel, steel ingots, boilers, casting modules

Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of Material Transfer Truck . Our company has been founded for 13 years and has become enterprise in the motorized Material Transfer Truck business.

You can check whether the dynamic pulley is slippery or worn, the general drive belt is more serious wear, both sides of the thin thickness significantly abnormal, resulting in electric flat car, normal translation change is unlikely, and again check whether the fixed immobile inner axle wheel is more serious wear, more serious wear will cause the operation of the track deviation rate to increase

Principle: The turntable electric flat car runs to the electric turntable, rotates the electric turntable manually or automatically, docks with the vertical track, runs the turntable electric flat car along the perpendicular to the track and realises a 90 degree turn, suitable for It is suitable for use in the production line of equipment such as loop tracks and cross transport tracks.

Usage：Heavy Duty Material Transportation
Application：Steel Industry, Factory, Warehouse, Port
Brand：Perfect
Load Capacity：1-300 Ton
Special Function：Anti-Explosion, Heat-Resistant, Lifting
Control Mode：Pendant/Remote/PLC Control
Power Mode：Battery/cable powered/rail powered….
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp.
Specification:Customized

Usage：Heavy Duty Material Transportation
Application：Steel Industry, Factory, Warehouse, Port
Brand：Perfect
Load Capacity：1-300 Ton
Special Function：Anti-Explosion, Heat-Resistant, Lifting
Control Mode：Pendant/Remote/PLC Control
Power Mode：Battery/cable powered/rail powered….
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp.
Specification:Customized

The Industrial Turntables is one of our patented products, which can make the rail transfer cart turning on the cross rails. When the cart running on the turntable, there will be a limit switch make the cart stop, and then operate the turntable turn whatever direction you want. The Industrial Turntables is equipped with rails to realize the joint or the cross rails.

The Industrial Turntables is one of our patented products, which can make the rail transfer cart turning on the cross rails. When the cart running on the turntable, there will be a limit switch make the cart stop, and then operate the turntable turn whatever direction you want. The Industrial Turntables is equipped with rails to realize the joint or the cross rails.

25 tons electric turntable car
The new material factory is an enterprise specializing in the production of new building materials, energy-saving bricks, and energy-saving materials.
The 25-ton electric turntable is powered by low-voltage rails. There are rails on the table, which can rotate 90 degrees and accurately align the rails.

The Industrial Turntables is one of our patented products, which can make the rail transfer cart turning on the cross rails. When the cart running on the turntable, there will be a limit switch make the cart stop, and then operate the turntable turn whatever direction you want. The Industrial Turntables is equipped with rails to realize the joint or the cross rails.

The steel industry turntable heavy transfer traverser is designed for cross rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when the rail transfer cart runs on the turntable transfer traverser, the turntable can be rotated automatically or manually until precisely connecting with the destination rail, then the transfer cart runs on the vertical rail. The turntable transfer traverser is suitable for many occasions, such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.

The steel industry turntable heavy transfer traverser is designed for cross rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when the rail transfer cart runs on the turntable transfer traverser, the turntable can be rotated automatically or manually until precisely connecting with the destination rail, then the transfer cart runs on the vertical rail. The turntable transfer traverser is suitable for many occasions, such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.

Rail flat car and turntable transfer system The project is a transfer system located in a workshop of a mechanical equipment factory in Shandong. It contains two electric turntables and a battery track flat car. The battery track car has a load capacity of 40 tons and is powered by battery packs. There are audible and visual warning lights when the rail car is driving. There is a reflective warning diagonal strip on the flat car.

The turntable rail transfer car is a table with the track of the turntable transfer vehicle. For the narrow space of the workshop, we have designed a model that can be rotated in place on the turntable to the designated track, and then the turntable rail transfer trolley can travel along the vertical rail. The turntable rail transfer car solves the problem of turning in a narrow space. The working principle is: the turntable can make the railcar rotate 90 degrees, 180 degrees, 360 degrees on the track. Under normal circumstances, the rotation of 180 degrees can fully meet the work requirements. The turntable system is stable in operation and has the characteristics of high precision combination. The control modes are remote control and manual. The turntable can be mounted on the ground or above the ground and can be designed according to the requirements of customer.

The working principle of the self propelled bogie turntable is that the electric flat car runs to the turntable, the transfer flat car does not move, the automatic rotating electric rotating self propelled bogie turntable is docked with the vertical track, so that the transfer car can run along the vertical track to achieve a 90 degree turn, which is suitable for the cross track equipment production line. The track docking precision is high, and fully automatic electrical control can be realized. The flat car can be rotated on the self propelled bogie turntable according to customer requirements, and docked with the track after the rotation. This process can solve the problem of track laying and space saving for customers. This combination allows you to move material from one floor to another more quickly, and one employee can do everything. So it will save a lot of labor and save a lot of money for customers. We can also customize the track spacing of the self propelled bogie turntable with rail track according to the customer’s needs.

The Rail trailer with turntable is an accessory for the electric flat car. When the production process flow line needs to turn, and the turning radius of the electric flat car can not meet the requirements, the turntable rail changing car can be configured to realize the 90 degree rotation of the electric flat car in situ, the positioning is accurate, and the track docking precision is high.

The turntable rail transfer car, also known as the electric rotating platform, is usually used with the battery-powered, 36V low-voltage rail-powered track flatbed. It can be rotated 360° and stopped at any angle, or fixed-point stop to make the track on the turntable and the track on the ground accurately dock.

The rail transfer car running on turntable is also called electric track car, track rotating platform, track car. rail transfer car running on turntable is mostly used with the track flatbed to help the track flatbed to carry the steering. The track flatbed goes along the track to the rail transfer car running on turntable, the rail transfer car running on turntable rotates to dock with another track, and the track flatbed runs along the other track to complete the work

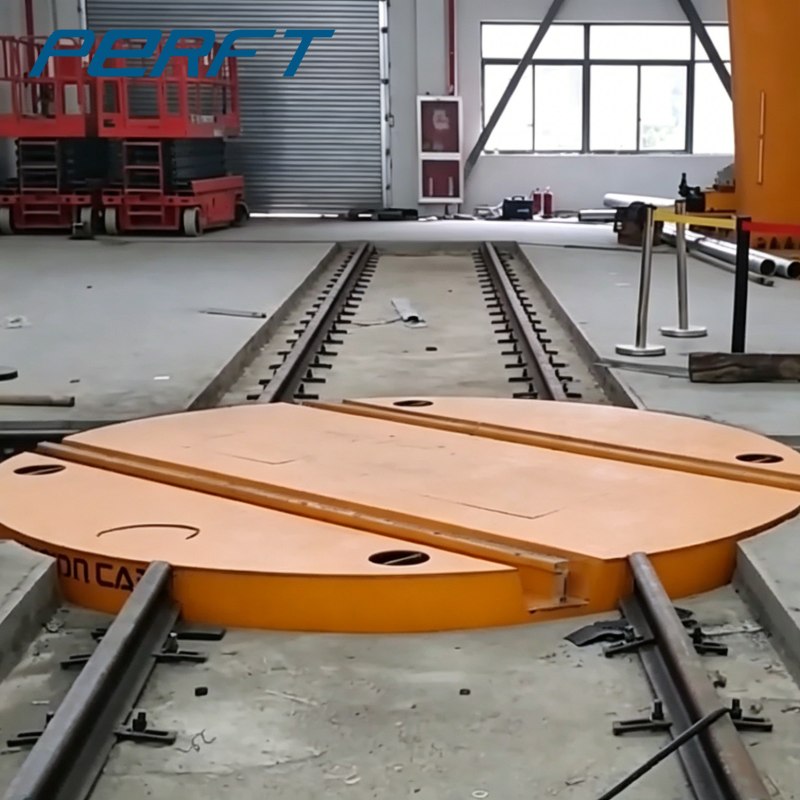

Turntables On Cross Rails is a kind of equipment to realize the in-situ turning and reversal of the track flat car. It is installed at the position where two tracks cross. One or more tracks are laid on the platform. The upper surface of the track is level with the upper surface of the track on the ground. The track gauge is the same as that of the ground. The flat car runs completely until it stops on the turntable. The turntable starts to rotate to the required angle to complete the docking with the track on the ground. The flat car starts again to run along the docked track to the required position. Its special function is a common equipment in rail transportation system. The loading weight of the trolley is the load capacity of the supporting turntable. The rotation angle of the turntable can be set according to the different needs of customers. It can stop at any angle of 360 degrees, and it can also realize the well-shaped cross operation.

The large-tonnage electric intelligent turntable transfer vehicle is a transfer vehicle with a large load capacity. The built-in smart chip can make the operation easier and safer. Using electricity as a power source can effectively save costs.,Product Name£ºElectric battery track flat car
Table size£¨mm£©£ºL4000*W2200*H550
Product Weight (t)£º5.9
Wheel Quantity: 4
Motor power(kw): 2
Running distance for one charge(km): 4.8

The industrial motorized transfer platform car running on turntable is an electric flatbed car whose bottom is driven by wheels, the four wheels are at a certain angle, and are equipped with guiding devices and proximity switch positioning devices. Therefore, it can solve problems that ordinary railway cars cannot solve. Good products can solve big problems for the company. The industrial motorized transfer platform car running on turntable can not only help users solve the problem of track change during transportation, but also save factory space.
