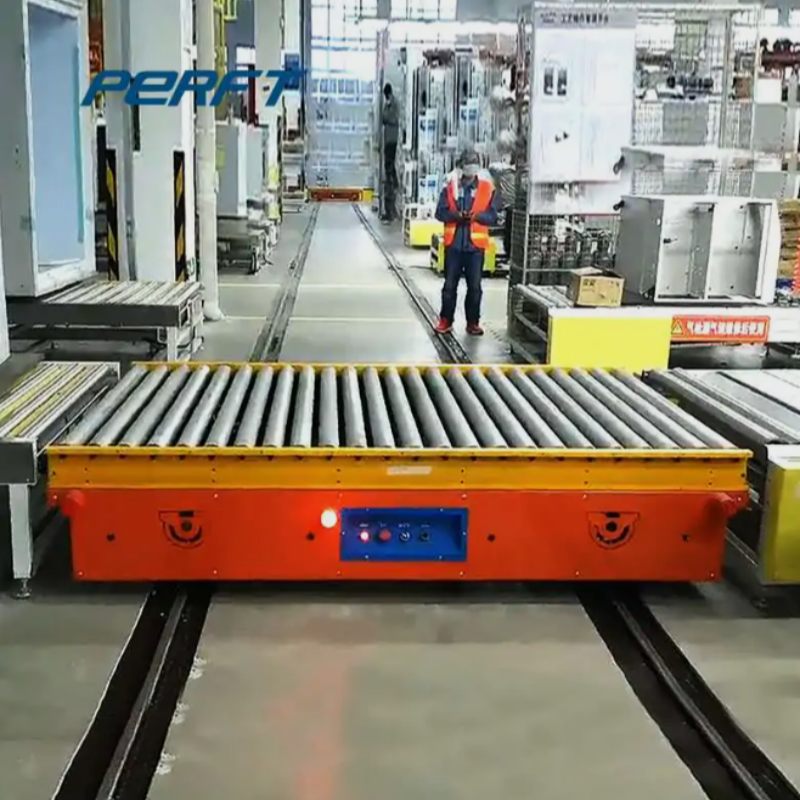

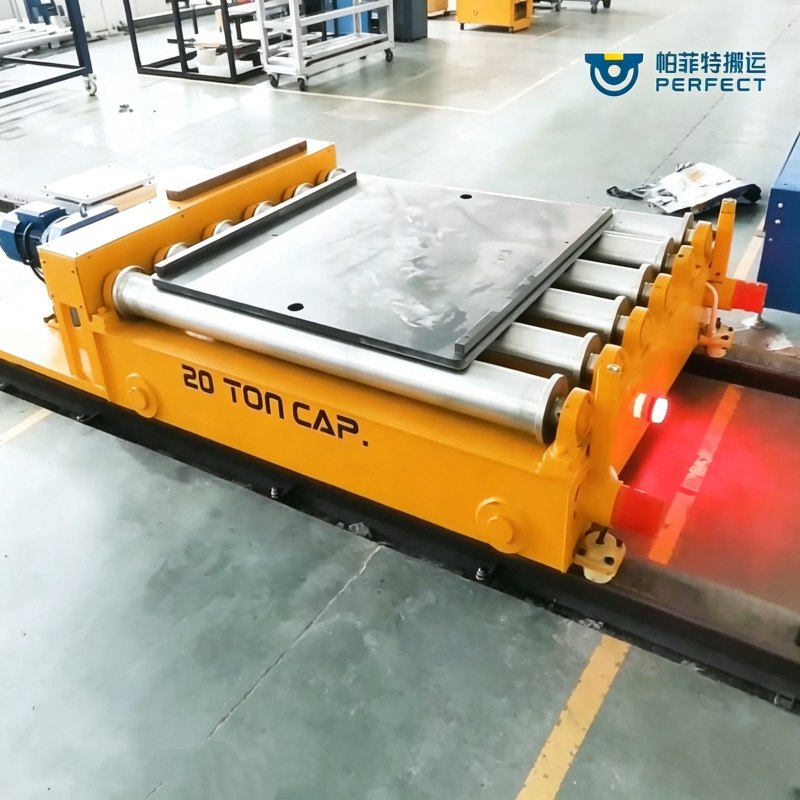

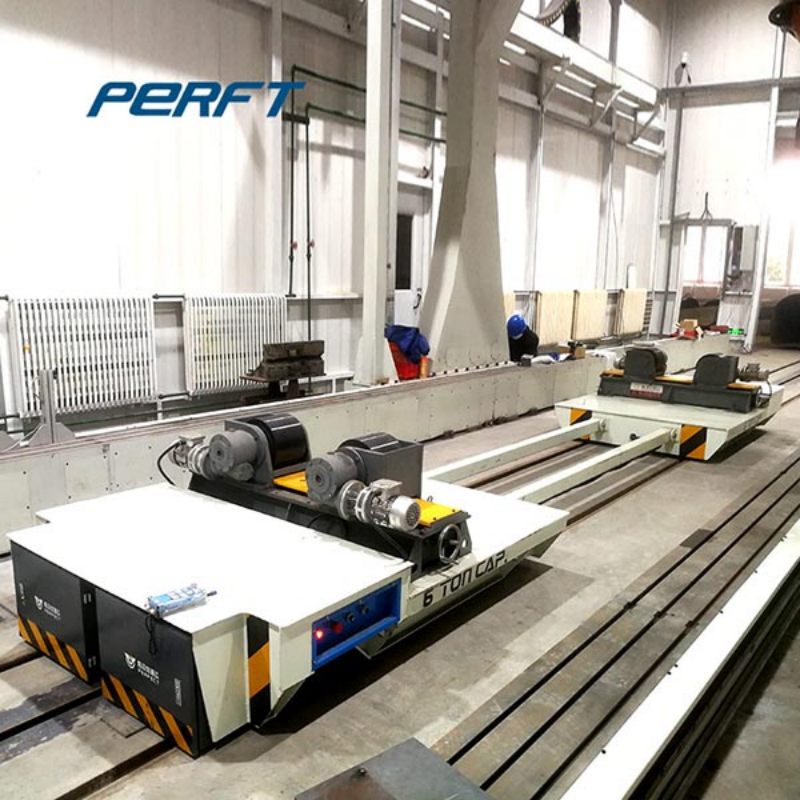

Busbar Rail Guided Transfer Cart For Production Line
Ideal busbar rail guided transfer cart for production lines supports 1–200 ton material handling with 24-hour continuous busbar power supply. Featuring precise ±1mm positioning, intelligent frequency conversion control, and full safety protection, it helps factories achieve stable, low-maintenance, cost-saving automated line transportation.
Ideal Automatic Transfer Equipment for Production Lines
In modern assembly line production scenarios, such as automobile assembly, heavy industry processing, sheet metal production, machine assembly, etc., the efficiency of cross-station material transfer restricts the production capacity of the factory. Relying on the two core structures of bus bar row power supply + rail oriented walking, the bus bar rail oriented transfer vehicle is specially customized for mass production lines, and can undertake the transfer of light and heavy workpieces from 1 to 200 tons, replacing the manual handling of battery transfer trucks and forklift trucks, and becoming the much-needed transfer equipment for the transformation of factory automation lines, and adapting to the layout of circular production lines, linear assembly lines, and multi-station cyclic conveying, and other types of layouts.
Continuous Busbar Power Supply, No Downtime for Charging
Different from the conventional battery railcar, this model adopts the rail side bus conductive power design, the whole car without on-board battery configuration, from the root to solve the short battery life, regular downtime charging, and battery aging replacement of the short board. The equipment can run continuously 24 hours a day, following the production line shift without stopping to transfer materials, to eliminate the production line due to a lack of electricity equipment production stoppage caused by empty consumption. It eliminates the cost of purchasing and regular replacement of batteries, and significantly reduces the investment in consumables for long-term use, especially suitable for large and medium-sized manufacturing workshops with continuous production in two shifts or three shifts.
Precise Rail Guidance, Stable Transfer & Accurate Positioning
Exclusive steel rail limit travel structure, the car body along the preset track directional driving, with limit anti-deviation structure, running without side-slip, no bumps, fixed-point stopping precision control within ±1mm, accurate docking machine tool loading port, assembly workstation, storage material area. The frame adopts a thickened box-type steel structure, which is resistant to heavy pressure and deformation, and it is not easy to bump and damage the materials during the transfer of heavy-duty large steel materials, molds, and machine parts, which reduces the loss of workpiece scrapping, and it is suitable for the use of high-precision parts and components production line.
Intelligent Variable Frequency Control, Energy Saving & Strong Line Adaptability
The whole vehicle is equipped with a frequency conversion drive + PLC intelligent electronic control module, which can start slowly and regulate the speed smoothly, and save about 30% of electricity compared with the old-fashioned resistance speed control transfer vehicle. It supports one-key start-stop and automatic cycle feeding, and can be docked with factory MES and production line central control systems to realize unattended automatic transfer. Modular body design, track can be customized according to the direction of the existing production line on-site laying, short transformation period, new and old workshop production lines can be flexibly installed on the ground.
Multiple Safety Protections & Low Maintenance Cost
It is equipped with infrared anti-collision detection, an emergency stop button, and an overload and power-off protection device as standard, and it automatically brakes when it meets obstacles on the way of operation, which avoids the hidden danger of collision in the workshop. The whole transfer cart line is regular, no dragging cable, no cable wear and tear failure; no battery maintenance needs, daily only need to regularly clean up the track debris, simple fastening connectors can be, the average annual maintenance costs are far lower than the battery transfer vehicle, the overall service life of the equipment can be more than ten years.
Help Production Lines Reduce Costs & Improve Efficiency
Busbar rail transfer cart with continuous power supply, high-precision walking, intelligent and controllable, low-maintenance, four major advantages, an all-round solution to the traditional production line transfer, low efficiency, frequent stoppages, operation and maintenance of expensive pain points, is the manufacturing industry line automation upgrading, compression of production costs, to enhance the assembly line operation rate of the core supporting equipment.
Contact us today to your specifications!
